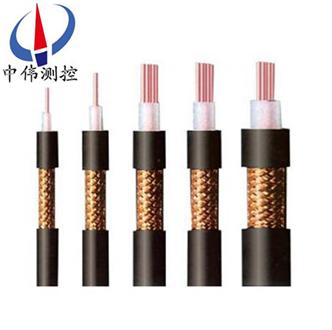

Solid core polyethylene insulated cable of the radio frequency
Solid core polyethylene insulated cable of the radio frequency scope of the product is suitable for …
Description：
Rf cable SYV solid core polyethylene insulation S - coaxial radio frequency cable, Y - polyethylene, V - polyvinyl chloride (PVC)
A, SYV product features:
1, with high-quality oxygen-free copper conductor, good material, not easy oxidation.
2, insulating material for polyethylene PE, transmission signal attenuation is small.
3, shield: oxygen free of pure copper shielding net, anti-interference effect is good.
4, can increase the aluminum foil shield according to customer demand, to achieve higher signal transmission effect.
Second, SYV structure:
Conductor: pure copper wire;
Insulation: polyethylene PE;
Screen cap layer: oxygen-free copper wire shielding net;
Conductor structure: 7/0.15 (7 root of single wire diameter is 0.15 mm).
Monofilament diameter: 0.15 mm.
Three, use conditions
1) the highest working temperature: 70 ℃
2) the lowest temperature: fixed installation - 40 ℃;
The fixed installation to 15 ℃.
3) the minimum bending radius: indoor use should not less than five times of cable diameter;
Outdoor use shall be not less than 10 times of cable diameter.
Four, SYV scope of application:
For video surveillance, video meeting system and so on electronic line construction, engineering decoration signal transmission.
Av equipment connection and other electronic devices, rf signal transmission.
